MLAX8A05-0050P0150-C4-S01
沒有找到想要的產品？請使用產品選擇工具
電動梯形絲杠執行器
Actuator, NEMA X8, Single stack, 0.500 Amp, 1.500 in stroke, in x 0.050 precision accuracy, C4 end mounting
Lead Time:
Contact Factory
Lead times may increase with higher quantities. Lead time displayed in business days.
行程長度:
Min: 0.25 in Max: 1.5 in
提醒
Length will be rounded to the nearest whole Overall Length. Tolerance values are based off Overall Length. Please review your new Overall and Threaded length:
Overall Length:
Threaded Length:
Do you want to continue with these values?
配置編碼器
提醒
刪除將移除您的編碼器配置。您確定要這樣做嗎？
- 集混合式步進電機和全密閉精密梯形絲杠于一身，且外形緊湊。
- 我們的執行器配置包括防旋轉裝置（所有產品的標配），因此無需外部導向。
- 由于組件內部的襯套設計，執行器配置能夠承受部分側向負載和彎矩負載。

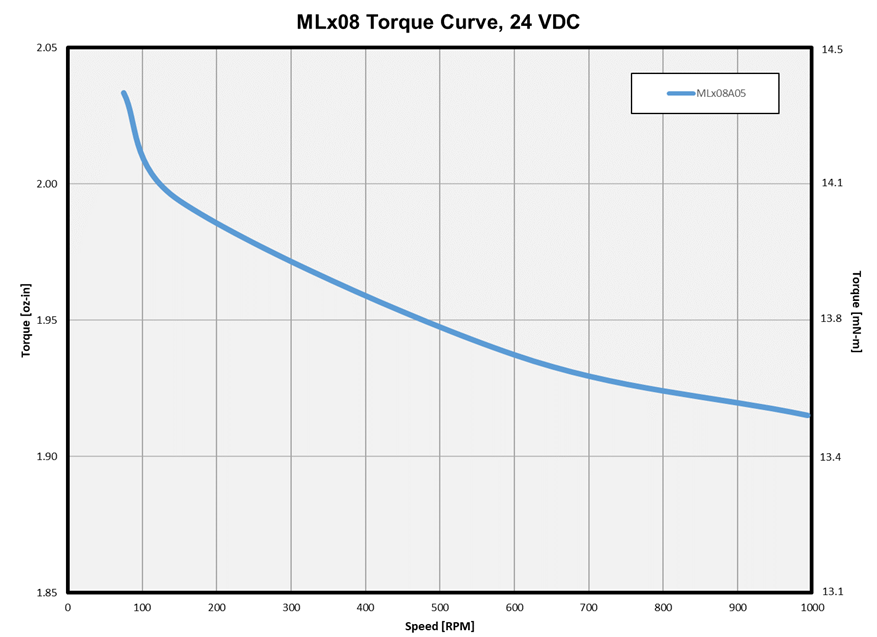

| Performance | Value |
|---|---|
| Max Dynamic Load @ 12v | 11.6 N / 2.6 lbf |
| Max Dynamic Load @ 24v | 11.1 N / 2.5 lbf |
| Max Dynamic Load @ 40v | 11.1 N / 2.5 lbf |
| Dynamic Load at Max Speed @ 12v | 10.2 N / 2.3 lbf @ 10.67 mm/s / 0.42 in/s |
| Dynamic Load at Max Speed @ 24v | 11.1 N / 2.5 lbf @ 10.67 mm/s / 0.42 in/s |
| Dynamic Load at Max Speed @ 40v | 11.1 N / 2.5 lbf @ 10.67 mm/s / 0.42 in/s |
| Recommended Max Axial Load | 44 N / 10 lbf |
| Max Side Load | 10% of Axial Load |
| Max Case Temperature | 60 °C / 140 °F |
| Operating Temperature Max | 52 °C / 125 F |
| Operating Temperature Min | -9 °C / 15 F |
